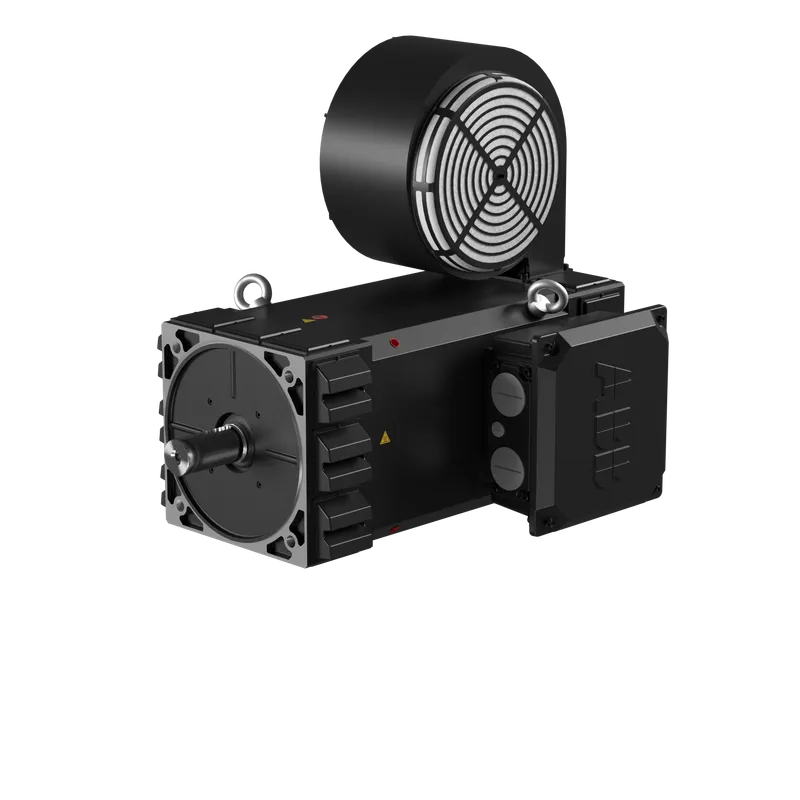

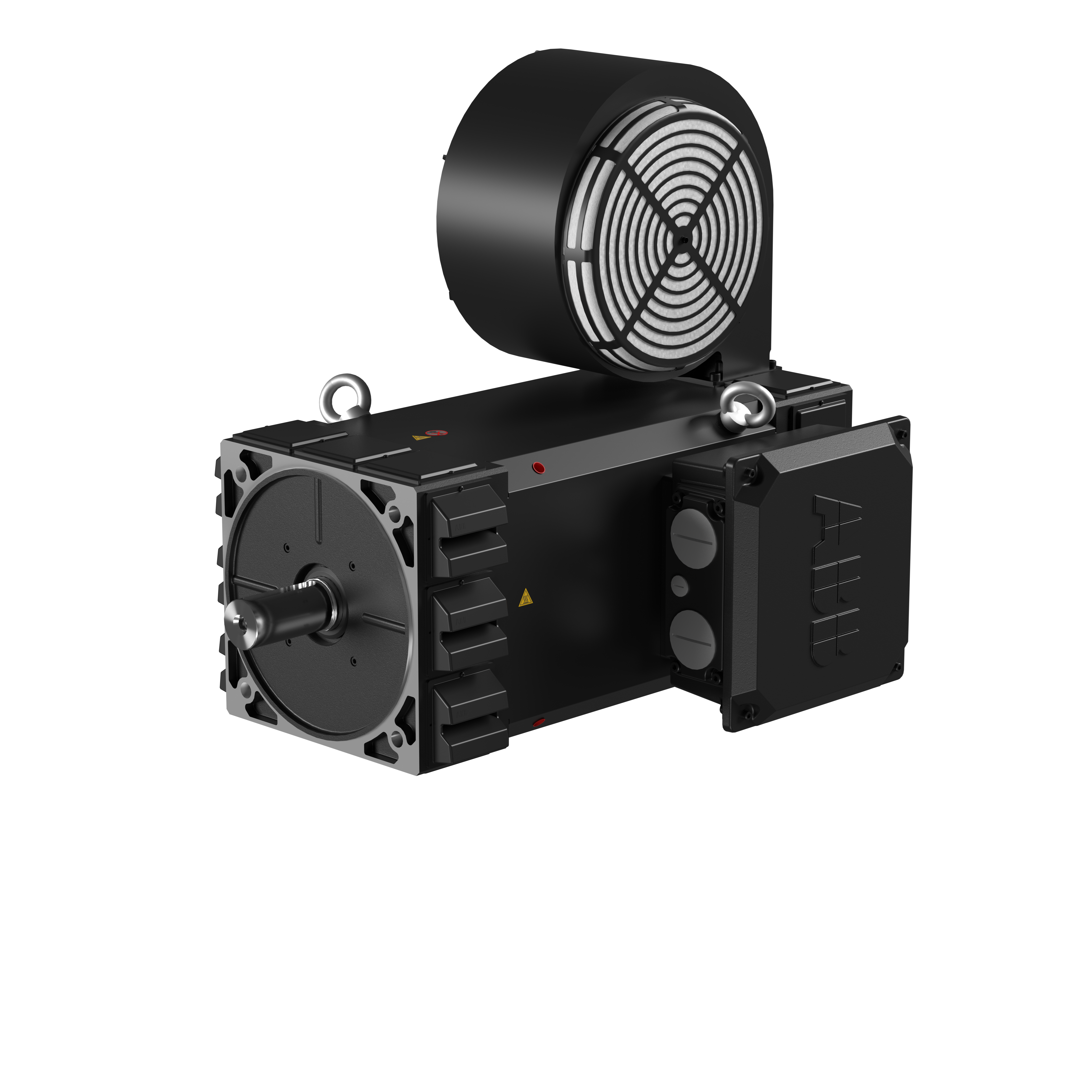

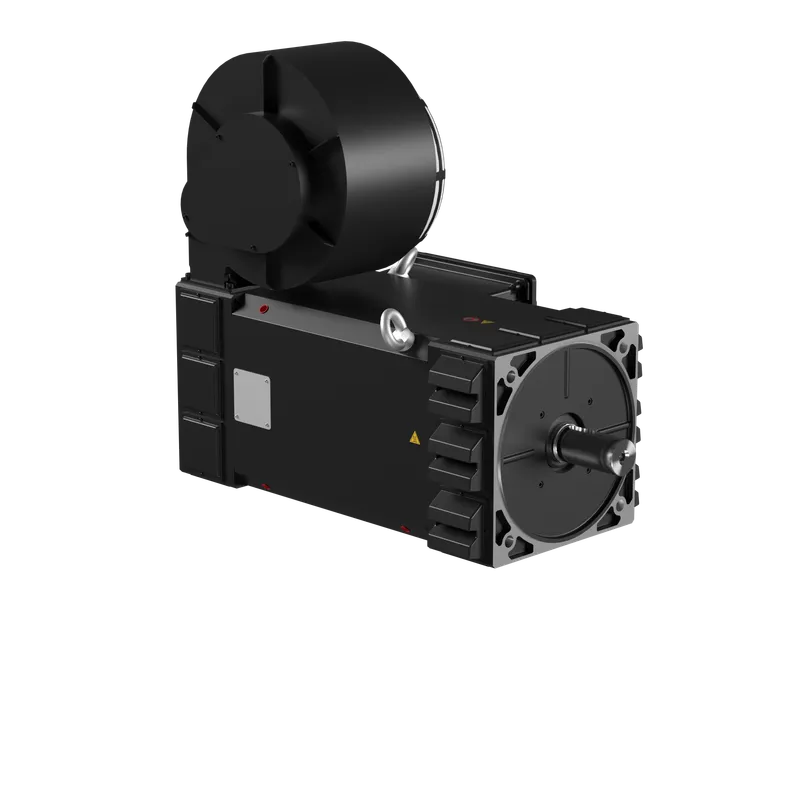

M3FT 160C 4
MPN: 3GFT162732-SDB · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Flameproof IEC Low voltage motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 266 kg |
Shipping & availability
When can 3GFT162732-SDB be shipped?
3GFT162732-SDB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GFT162732-SDB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GFT162732-SDB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GFT162732-SDB, subject to availability and destination.
HDP Induction Motors, 72 kW, 400 V (3GFT162732-SDB)
Specifications
Ordering
| ABB Type Designation | M3FT 160C 4 |
| Invoice Description | M3FT 160C 4 |
| Product Name | High dynamic performance motors |
| Product Type | 3FTB__M3FT__HDP__IP23_ |
| Country or Territory of Origin | Finland |
| Customs Tariff Number | 85015290 |
| Medium Description | 72kW, 4P, Frame Size 160, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GFT162732-SDB) |
| Short Description | 72kW, 4P, Frame Size 160, 3PH, 400V, 50Hz, IP55, IMB35/IM2001 |
Electrical
| Connection Configuration | D |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 400 V V |
| Frequency (f) | 50 Hz Hz |
| Motor Operational Voltage | 370 V V |
| Operating Frequency (fsw) | 51.200 Hz Hz |
| Output Power | 72 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC06 |
| IE Class Data (50 Hz) | IE Class NA, Full Load (100%) 91.3 %, Partial Load (75%) 92.1 %, Partial Load (50%) 91.9 % |
| IE Class Data (60 Hz) | IE Class NA, Full Load (100%) 92.3 %, Partial Load (75%) 92.7 %, Partial Load (50%) 92.3 % |
| IP Class | IP23 |
| Insulation Class | ICLH |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 4 |
| Two Speed Motor | No |
| Type of Duty | S9 |
| Voltage Code | D |
Mechanical
| Frame Material | Aluminum |
| Frame Size | 160 |
| Bearing | 6312-2Z |
| Bearing NDE | 6312-2Z |
| IM Class | IMB35 IM2001 |
| Terminator Box Location | N-End right side |
Dimensions
| Product Net Depth / Length | 746 mm mm |
| Product Net Height | 702 mm mm |
| Product Net Width | 514 mm mm |
| Product Net Weight | 266 kg kg |
| Gross Weight | 276 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
External Classifications and Standards
| UNSPSC | 26101100 |
