Home / ABB / M3FT 132B 4
Available on request

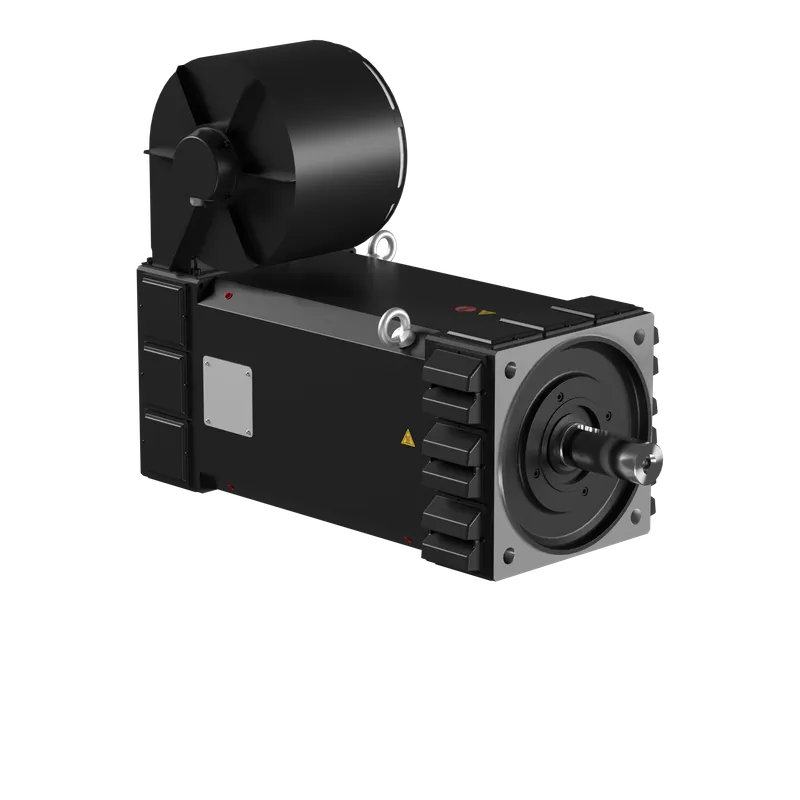

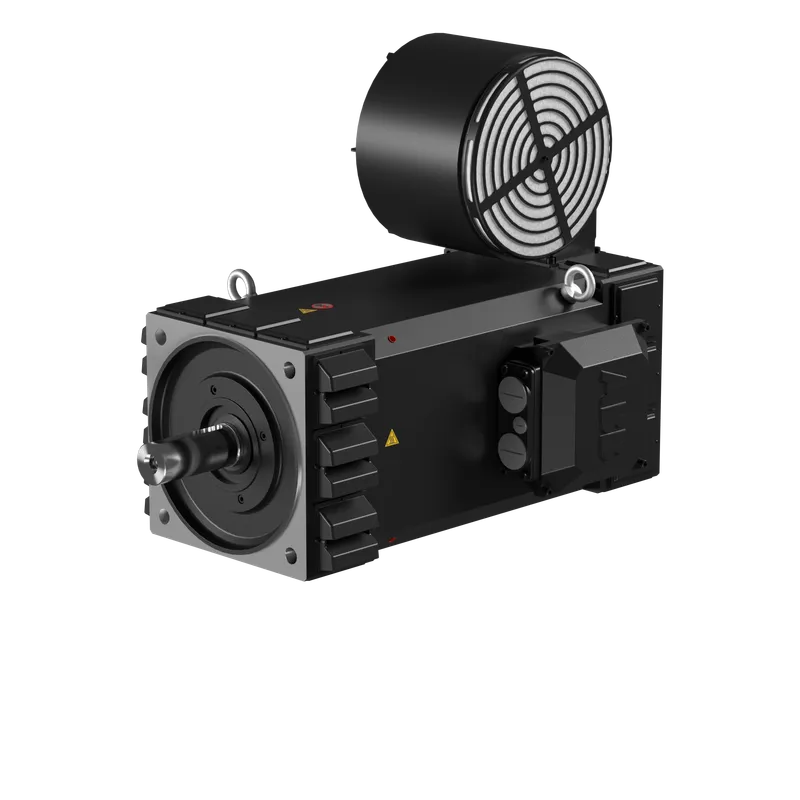

M3FT 132B 4

MPN: 3GFT132722-SDB · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight102 kg

Shipping & availability

When can 3GFT132722-SDB be shipped?

3GFT132722-SDB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GFT132722-SDB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GFT132722-SDB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GFT132722-SDB, subject to availability and destination.

HDP Induction Motors, 27 kW, 400 V (3GFT132722-SDB)

Specifications

Ordering

ABB Type DesignationM3FT 132B 4
Invoice DescriptionM3FT 132B 4
Product NameHigh dynamic performance motors
Product Type3FTB__M3FT__HDP__IP23_
Country or Territory of OriginFinland
Customs Tariff Number85015230
Medium Description27kW, 4P, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GFT132722-SDB)
Short Description27kW, 4P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection ConfigurationY
Temperature Class Default--
Input Voltage (Uin)400 V V
Frequency (f)50 Hz Hz
Motor Operational Voltage380 V V
Operating Frequency (fsw)51.800 Hz Hz
Output Power27 kW kW
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC06
IE Class Data (50 Hz)IE Class NA, Full Load (100%) 87.0 %, Partial Load (75%) 89.4 %, Partial Load (50%) 90.1 %
IE Class Data (60 Hz)IE Class NA, Full Load (100%) 88.2 %, Partial Load (75%) 89.5 %, Partial Load (50%) 89.7 %
IP ClassIP23
Insulation ClassICLH
Direction of RotationBoth sides
Number of Poles (High)4
Two Speed MotorNo
Type of DutyS9
Voltage CodeD

Mechanical

Frame MaterialAluminum
Frame Size132
Bearing6310-2Z
Bearing NDE6310-2Z
IM ClassIMB35 IM2001
Terminator Box LocationN-End right side

Dimensions

Product Net Depth / Length531 mm mm
Product Net Height532 mm mm
Product Net Width374 mm mm
Product Net Weight102 kg kg
Gross Weight107 kg kg

Environmental

WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC26101100
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
