M3FT 100D 4

Name: M3FT 100D 4
Brand: ABB
SKU: 3GFT102744-SDB

MPN: 3GFT102744-SDB · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Flameproof IEC Low voltage motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	72 kg

Shipping & availability

When can 3GFT102744-SDB be shipped?

3GFT102744-SDB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GFT102744-SDB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GFT102744-SDB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GFT102744-SDB, subject to availability and destination.

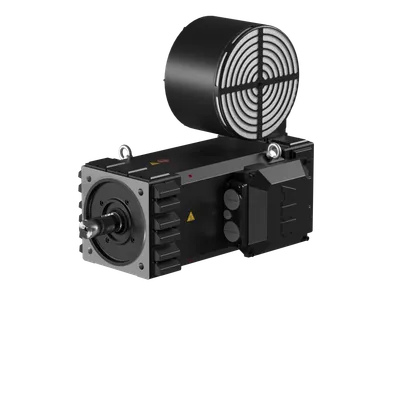

HDP Induction Motors, 17.5 kW, 400 V (3GFT102744-SDB)

Specifications

Ordering

ABB Type Designation	M3FT 100D 4
Invoice Description	M3FT 100D 4
Product Name	High dynamic performance motors
Product Type	3FTB__M3FT__HDP__IP23_
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Medium Description	17.5kW, 4P, Frame Size 100, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GFT102744-SDB)
Short Description	17,5kW, 4P, Frame Size 100, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	370 V V
Operating Frequency (fsw)	68.900 Hz Hz
Output Power	17.5 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC06
IE Class Data (50 Hz)	IE Class IE1, Full Load (100%) 89.8 %, Partial Load (75%) 90.4 %, Partial Load (50%) 90.2 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 90.8 %, Partial Load (75%) 91.2 %, Partial Load (50%) 90.5 %
IP Class	IP23
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D
