M3ET 180C 4

Name: M3ET 180C 4
Brand: ABB
SKU: 3GET182736-HDB

MPN: 3GET182736-HDB · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Flameproof IEC Low voltage motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	495 kg

Shipping & availability

When can 3GET182736-HDB be shipped?

3GET182736-HDB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GET182736-HDB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GET182736-HDB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GET182736-HDB, subject to availability and destination.

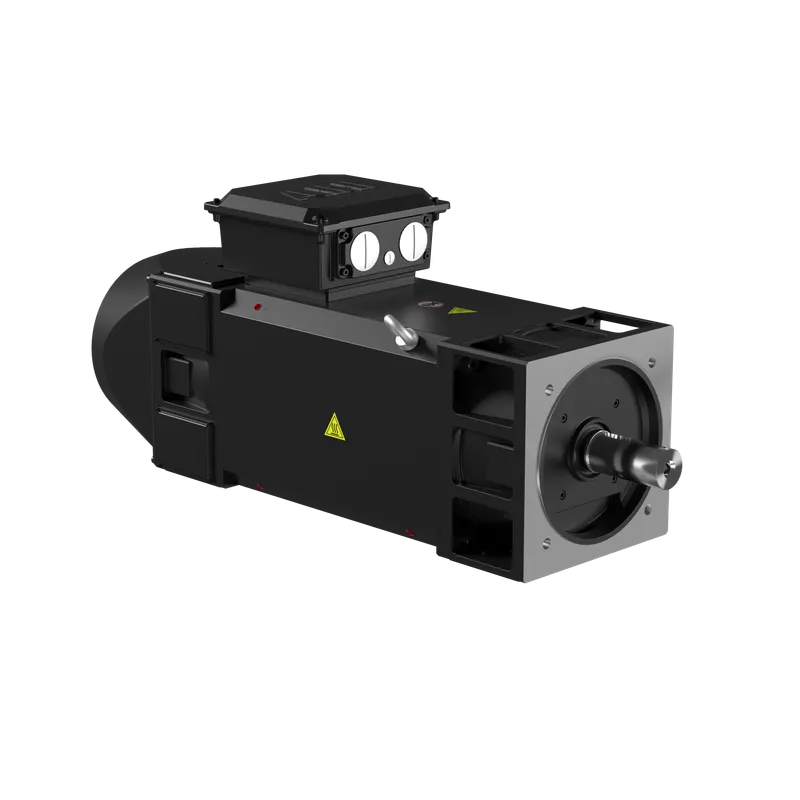

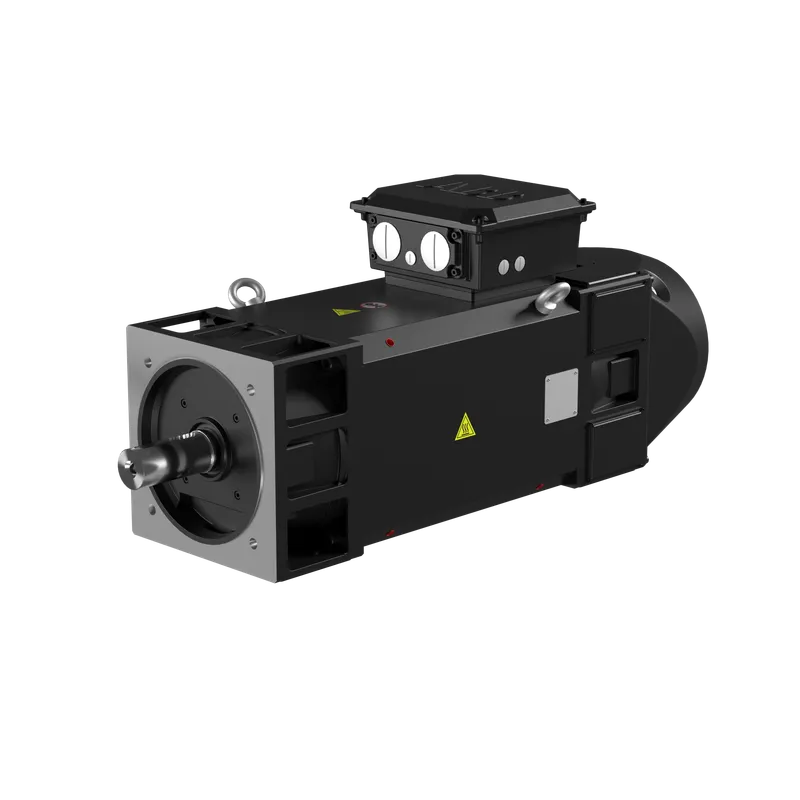

HDP Induction Motors, 87 kW, 400 V (3GET182736-HDB)

Specifications

Ordering

ABB Type Designation	M3ET 180C 4
Invoice Description	M3ET 180C 4
Product Name	High dynamic performance motors
Product Type	3ETB__M3ET__HDP__IP55_
Country or Territory of Origin	Finland, China
Customs Tariff Number	85015381
Medium Description	87kW, 4P, Frame Size 180, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GET182736-HDB)
Short Description	87kW, 4P, Frame Size 180, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	380 V V
Operating Frequency (fsw)	100.700 Hz Hz
Output Power	87 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC416
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 94.3 %, Partial Load (75%) 92.8 %, Partial Load (50%) 90.9 %
IE Class Data (60 Hz)	IE Class IE2, Full Load (100%) 93.7 %, Partial Load (75%) 92.6 %, Partial Load (50%) 90.6 %
IP Class	IP55
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D
