Home / ABB / M3ET 100D 4
Available on request

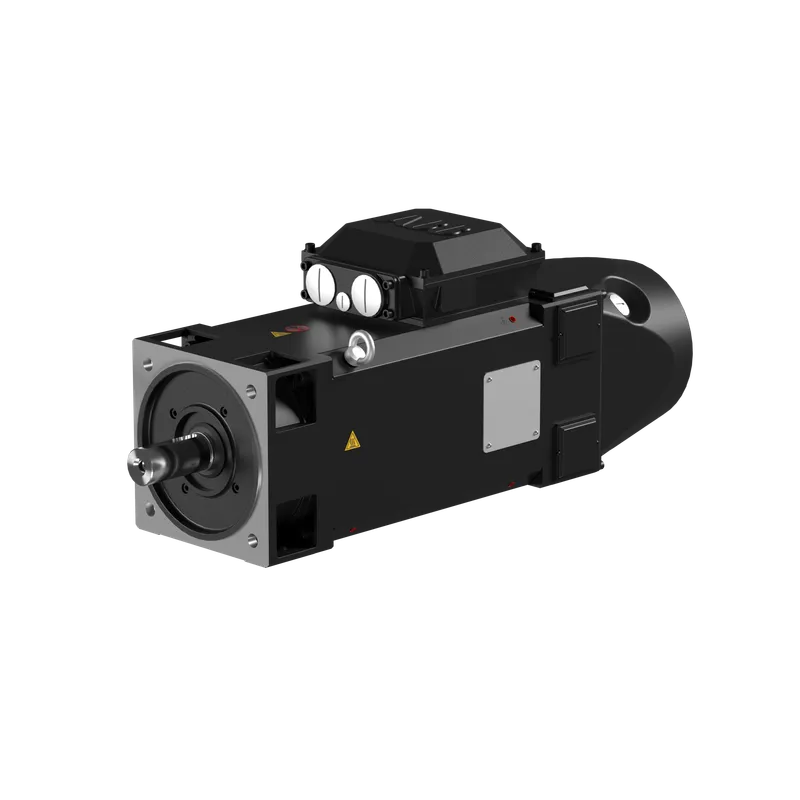

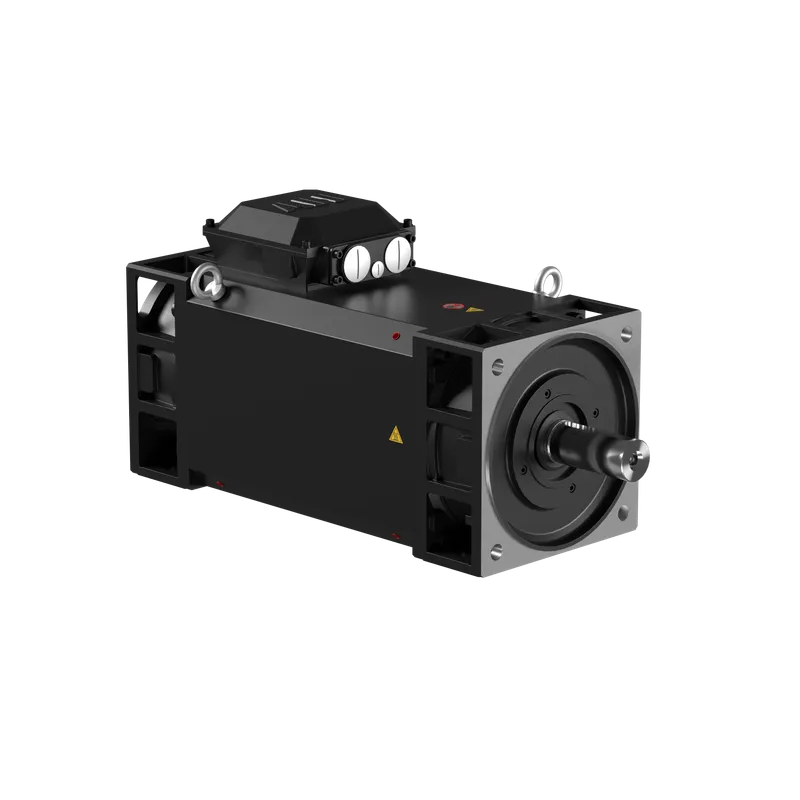

M3ET 100D 4

MPN: 3GET102744-HDB · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight69 kg

Shipping & availability

When can 3GET102744-HDB be shipped?

3GET102744-HDB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GET102744-HDB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GET102744-HDB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GET102744-HDB, subject to availability and destination.

HDP Induction Motors, 12 kW, 400 V (3GET102744-HDB)

Specifications

Ordering

ABB Type DesignationM3ET 100D 4
Invoice DescriptionM3ET 100D 4
Product NameHigh dynamic performance motors
Product Type3ETB__M3ET__HDP__IP55_
Country or Territory of OriginFinland
Customs Tariff Number85015230
Medium Description12kW, 4P, Frame Size 100, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GET102744-HDB)
Short Description12kW, 4P, Frame Size 100, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection ConfigurationD
Temperature Class Default--
Input Voltage (Uin)400 V V
Frequency (f)50 Hz Hz
Motor Operational Voltage340 V V
Operating Frequency (fsw)68.400 Hz Hz
Output Power12 kW kW
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC416
IE Class Data (50 Hz)IE Class IE2, Full Load (100%) 90.9 %, Partial Load (75%) 91.0 %, Partial Load (50%) 90.4 %
IE Class Data (60 Hz)IE Class IE2, Full Load (100%) 91.6 %, Partial Load (75%) 91.3 %, Partial Load (50%) 89.4 %
IP ClassIP55
Insulation ClassICLH
Direction of RotationBoth sides
Number of Poles (High)4
Two Speed MotorNo
Type of DutyS9
Voltage CodeD

Mechanical

Frame MaterialAluminum
Frame Size100
Bearing6308-2Z
Bearing NDE6308-2Z
IM ClassIMB35 IM2001
Terminator Box LocationN-End top

Dimensions

Product Net Depth / Length710 mm mm
Product Net Height283 mm mm
Product Net Width209 mm mm
Product Net Weight69 kg kg
Gross Weight74 kg kg

Environmental

WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC26101100
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
