Home / ABB / M3BP 280SMC 4
Available on request

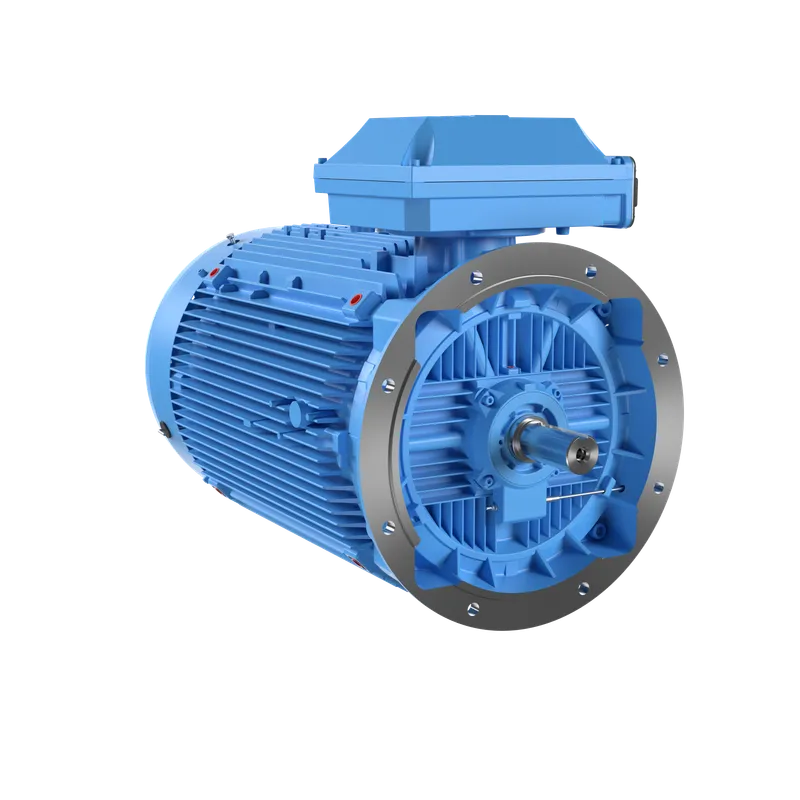

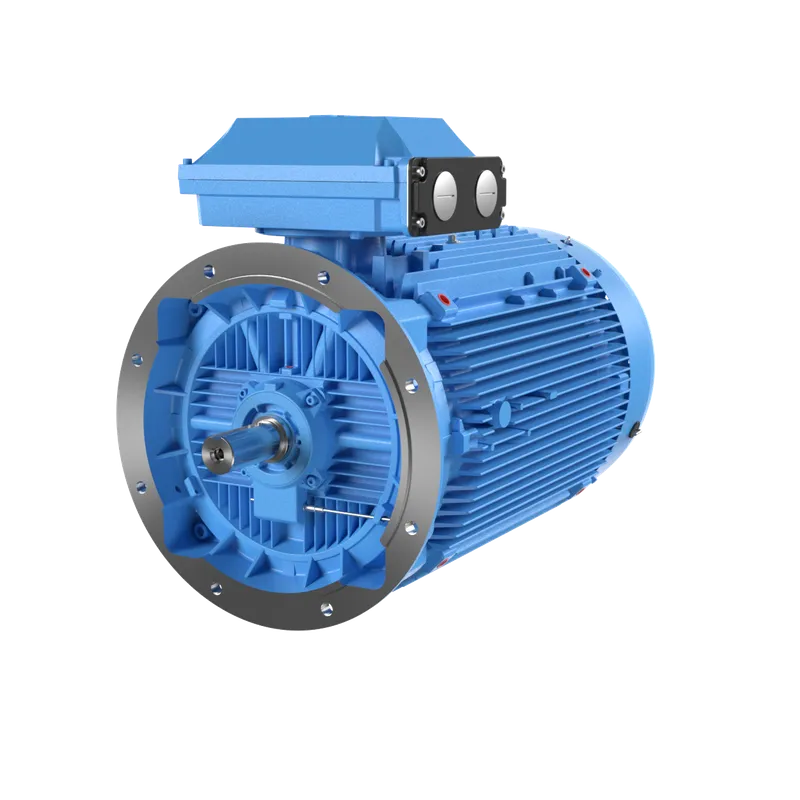

M3BP 280SMC 4

MPN: 3GBP282230-BUG · Brand: ABB
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight725 kg

Shipping & availability

When can 3GBP282230-BUG be shipped?

3GBP282230-BUG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GBP282230-BUG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GBP282230-BUG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBP282230-BUG, subject to availability and destination.

IE2 High Efficiency Cast Iron Motors, 110 kW, 690 V (3GBP282230-BUG)

Specifications

Ordering

ABB Type DesignationM3BP 280SMC 4
Invoice DescriptionHIGH OUTPUT
Product Name3-Phase squirrel cage motor
Product Type3BP2__M3BP_IE2_CI
Country or Territory of OriginFinland, China, Poland
Customs Tariff Number85015381
Medium Description110kW, 4 Poles, Frame Size 280, 3 Phases, 690V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBP282230-BUG)
Short Description110kW, 4P, Frame Size 280, 3PH, 690V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection ConfigurationD
Temperature Class Default--
Input Voltage (Uin)690 V V
Frequency (f)50 Hz Hz
Output Power110 kW kW
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC411
IE Class Data (50 Hz)IE Class IE2, Full Load (100%) 95.0 %, Partial Load (75%) 95.0 %, Partial Load (50%) 94.0 %
IP ClassIP55
Insulation ClassICLF
Direction of RotationBoth sides
Number of Poles (High)4
Two Speed MotorNo
Type of DutyS1
Voltage CodeU

Mechanical

Frame MaterialCast Iron
Frame Size280
Bearing6316/C3
Bearing NDE6316/C3
IM ClassIMB5 IM3001
Terminator Box LocationTop

Dimensions

Product Net Depth / Length1088 mm mm
Product Net Height762 mm mm
Product Net Width577 mm mm
Product Net Weight725 kg kg
Gross Weight745 kg kg

Environmental

WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP54c45c7b-7581-40ab-b615-c1dcb277d8a7 Finland

External Classifications and Standards

UNSPSC26101100
