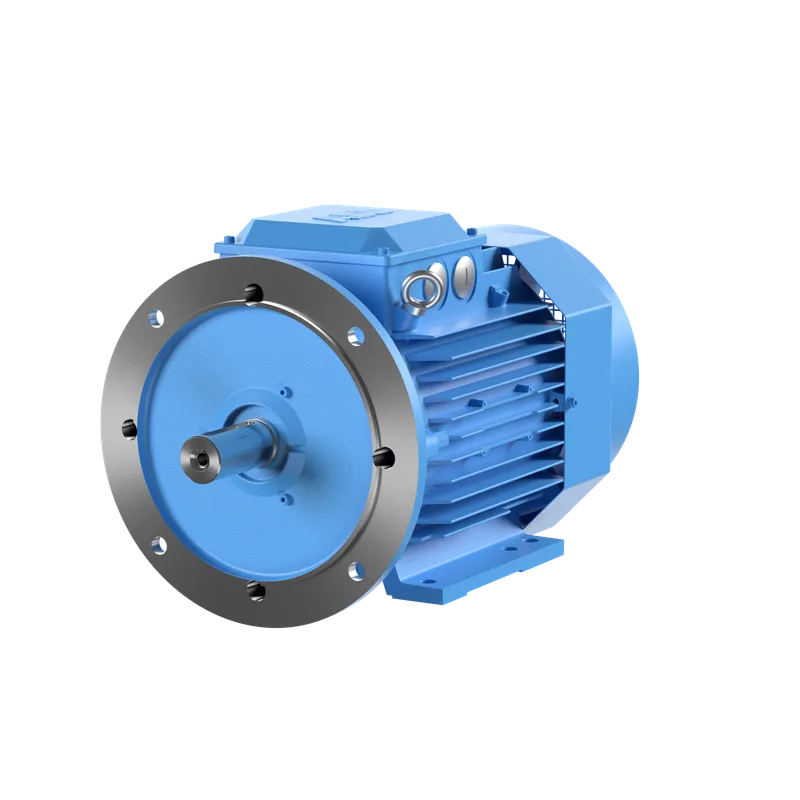

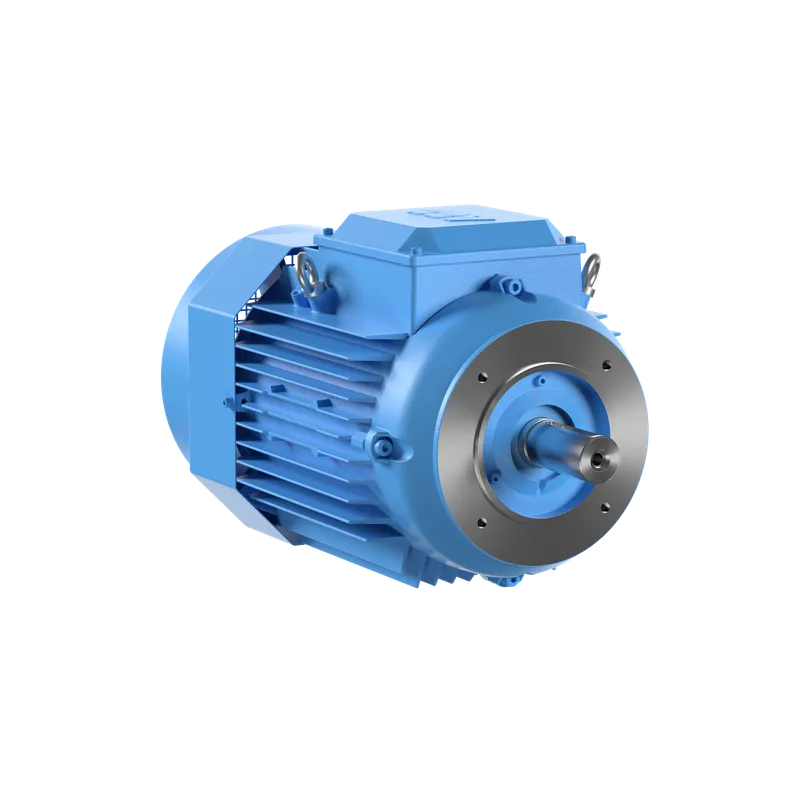

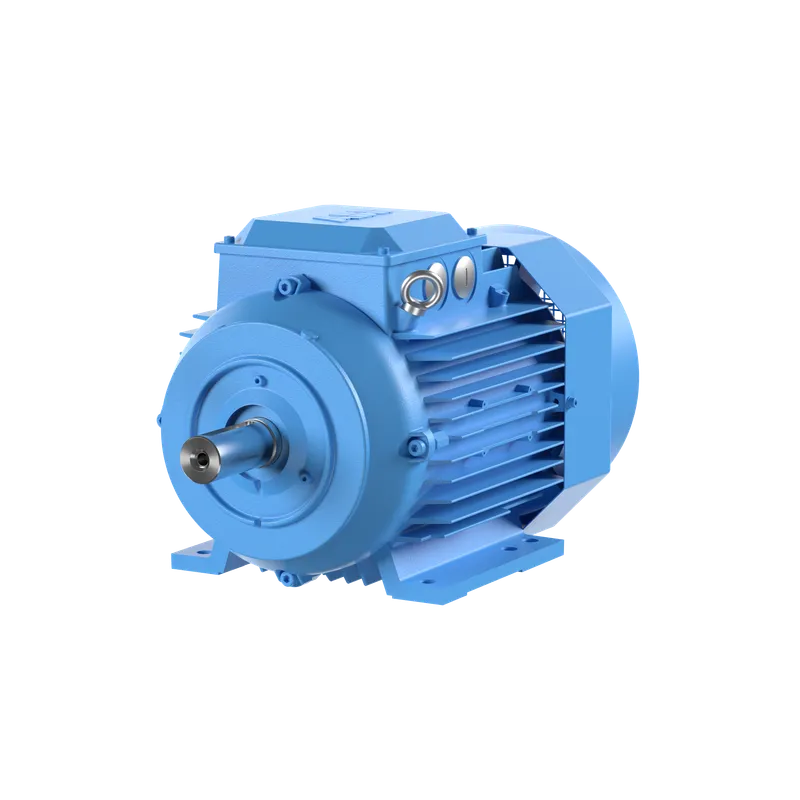

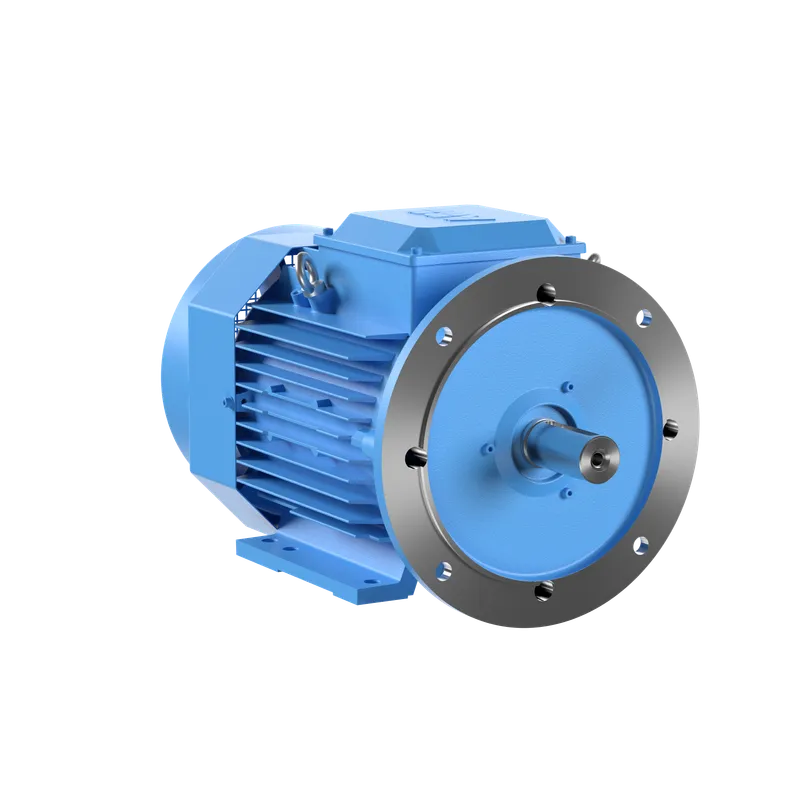

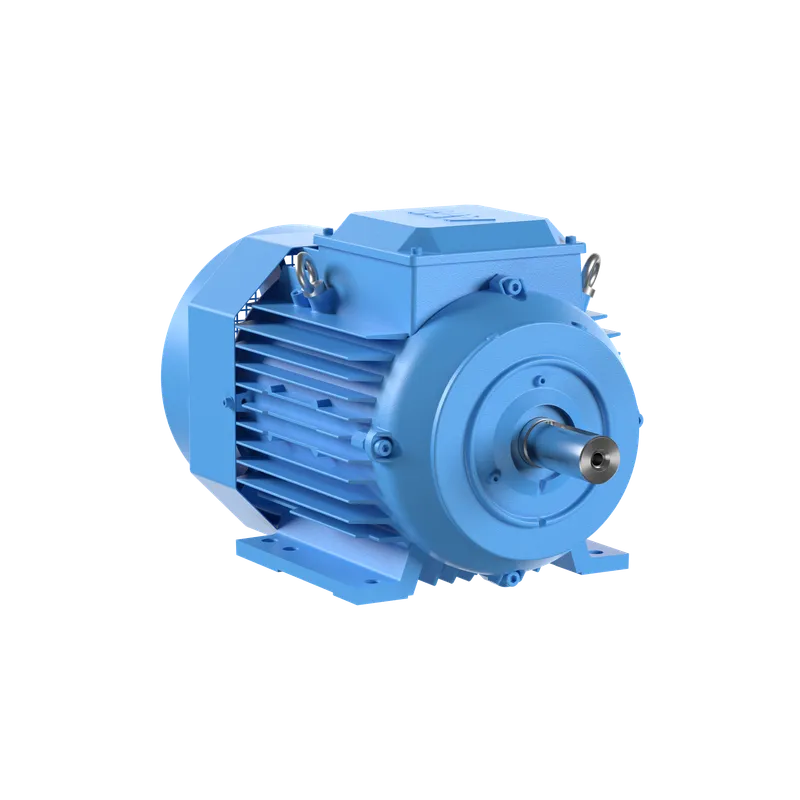

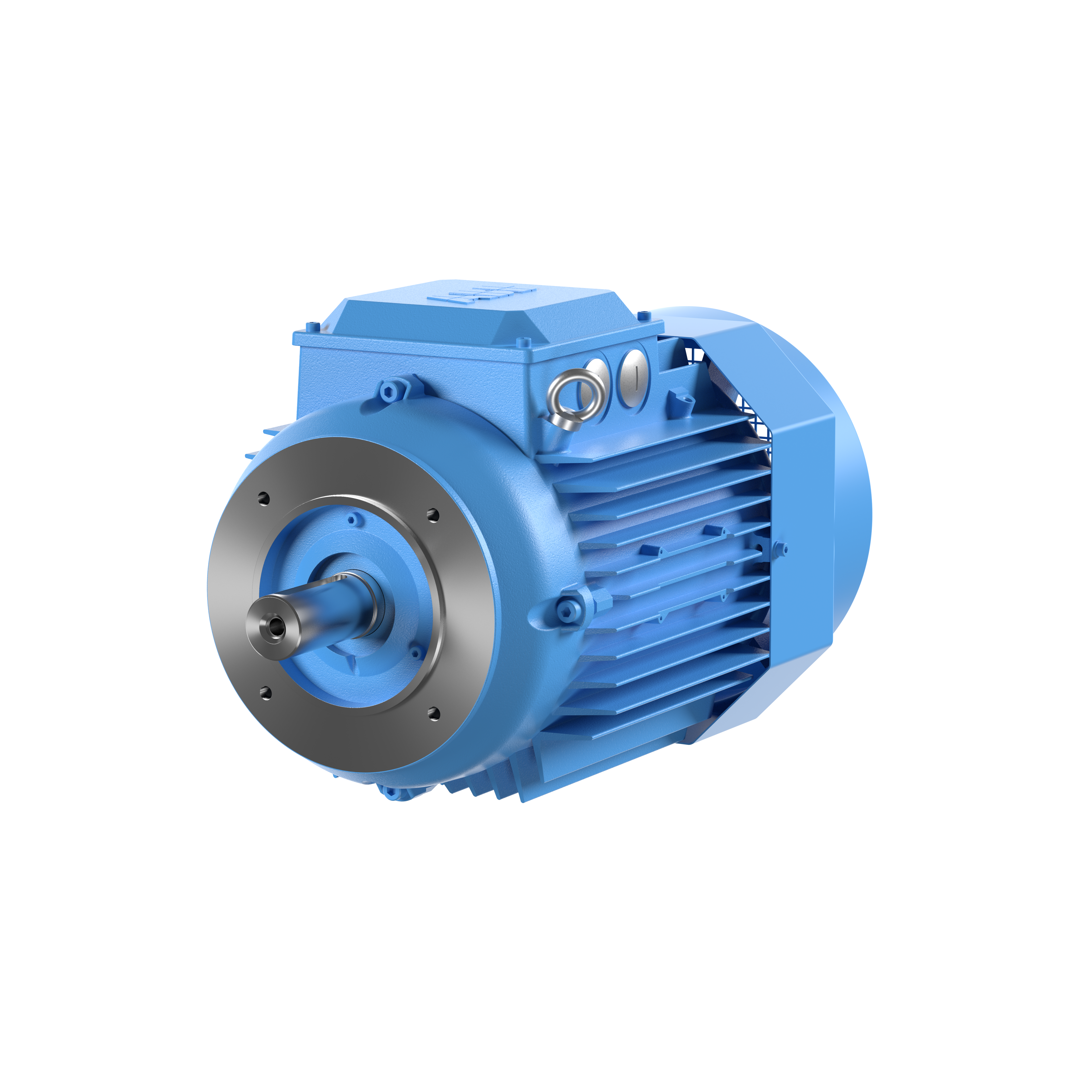

M3BP 132SME 2

Name: M3BP 132SME 2
Brand: ABB
SKU: 3GBP131445-JGB

MPN: 3GBP131445-JGB · Brand: ABB

Price on request

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Flameproof IEC Low voltage motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	75 kg

Shipping & availability

When can 3GBP131445-JGB be shipped?

3GBP131445-JGB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GBP131445-JGB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GBP131445-JGB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBP131445-JGB, subject to availability and destination.

(3GBP131445-JGB)

Specifications

Ordering

ABB Type Designation	M3BP 132SME 2
Product Name	3-Phase squirrel cage motor
Product Type	3BP2__M3BP_IE2_CI
Country or Territory of Origin	Spain, Finland, China
Customs Tariff Number	85015220

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 89.8 %, Partial Load (75%) 90.0 %, Partial Load (50%) 89.0 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	G G
