Home / ABB / M2BAX 355SMB 8
Available on request

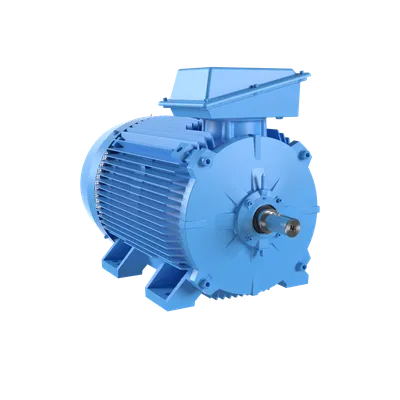

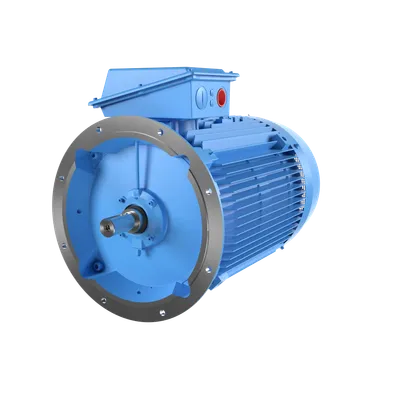

M2BAX 355SMB 8

MPN: 3GBA354220-ADMIN · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight1680 kg

Shipping & availability

When can 3GBA354220-ADMIN be shipped?

3GBA354220-ADMIN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GBA354220-ADMIN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GBA354220-ADMIN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBA354220-ADMIN, subject to availability and destination.

IE3 (BIS) Premium Efficiency Cast Iron Motors, 160 kW, 400 V (3GBA354220-ADMIN)

Specifications

Ordering

ABB Type DesignationM2BAX 355SMB 8
Invoice DescriptionM2BAX 355SMB 8
Product Name3-Phase squirrel cage motor
Product TypeIBA3__M2BAX_IE3_CI
Country or Territory of OriginIndia
Customs Tariff Number85015381
Medium Description160kW, 8 Poles, Frame Size 355, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA354220-ADMIN)
Short Description160kW, 8P, Frame Size 355, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection ConfigurationD
Temperature Class Default--
Input Voltage (Uin)400 V V
Frequency (f)50 Hz Hz
Output Power160 kW kW
Altitude1000 m m
Ambient Temperature50 °C
IC ClassIC411
IE Class Data (50 Hz)IE Class IE3, Full Load (100%) 94.3 %, Partial Load (75%) 94.3 %, Partial Load (50%) 92.3 %
IP ClassIP55
Insulation ClassICLF
Direction of RotationBoth sides
Number of Poles (High)8
Two Speed MotorNo
Type of DutyS1
Voltage CodeD

Mechanical

Frame MaterialCast Iron
Frame Size355
Bearing6322/C3
Bearing NDE6316/C3
IM ClassIMB3 IM1001
Terminator Box LocationD-End top

Dimensions

Product Net Depth / Length1469 mm mm
Product Net Height962 mm mm
Product Net Width739 mm mm
Product Net Weight1680 kg kg
Gross Weight1710 kg kg

External Classifications and Standards

UNSPSC26101100
