Home / ABB / M2BAX 160MLB 4
Available on request

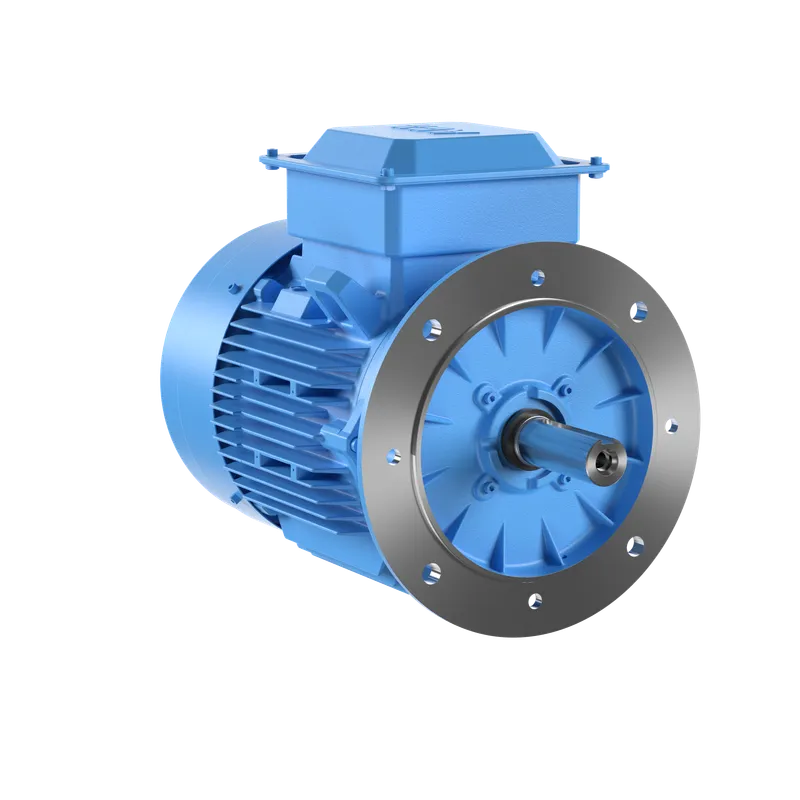

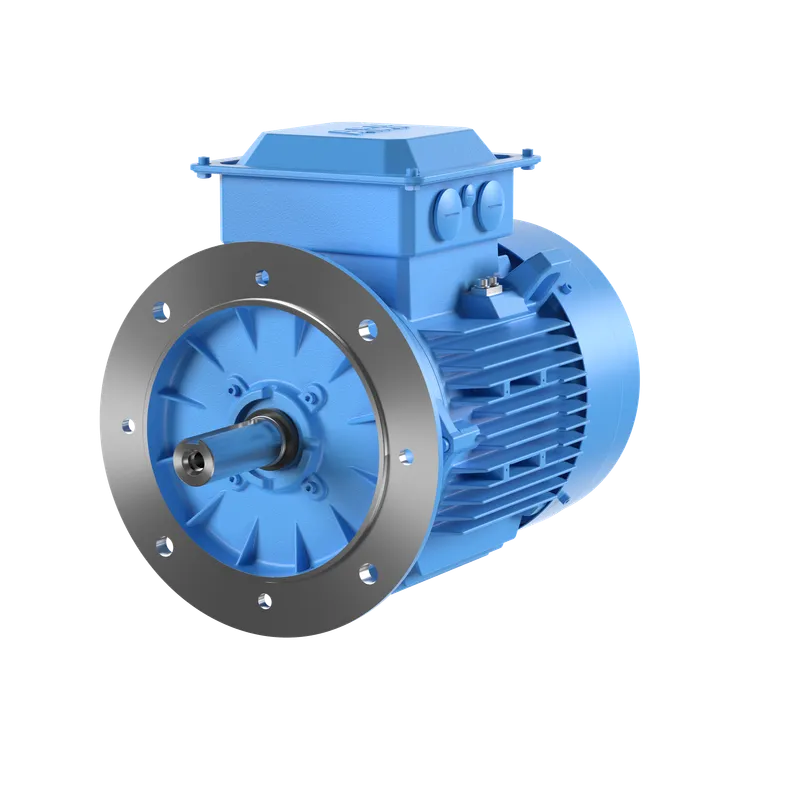

M2BAX 160MLB 4

MPN: 3GBA162420-BEF · Brand: ABB
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight161 kg

Shipping & availability

When can 3GBA162420-BEF be shipped?

3GBA162420-BEF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GBA162420-BEF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GBA162420-BEF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBA162420-BEF, subject to availability and destination.

IE3 Premium Efficiency Cast Iron Motors, 15 kW, 500 V (3GBA162420-BEF)

Specifications

Ordering

ABB Type DesignationM2BAX 160MLB 4
Invoice DescriptionM2BAX 160MLB 4
Product Name3-Phase squirrel cage motor
Product TypeEBA3__M2BAX_CI
Country or Territory of OriginChina, Poland
Customs Tariff Number85015230
Stocked At (Warehouses)Menden, Germany

Electrical

Connection ConfigurationD
Temperature Class Default--
Input Voltage (Uin)500 V V
Frequency (f)50 Hz Hz
Output Power15 kW kW
IC ClassIC411
IE Class Data (50 Hz)IE Class IE3, Full Load (100%) 92.1 %, Partial Load (75%) 92.4 %, Partial Load (50%) 91.6 %
IE Class Data (60 Hz)IE Class IE3, Full Load (100%) 93.0 %, Partial Load (75%) 92.8 %, Partial Load (50%) 91.7 %
IP ClassIP55
Insulation ClassICLF
Direction of RotationBoth sides
Number of Poles (High)4
Two Speed MotorNo
Voltage CodeE

Mechanical

Frame Size160
Bearing6209-2Z/C3
Bearing NDE6209-2Z/C3
IM ClassIMB5 IM3001
Terminator Box LocationD-End top

Dimensions

Product Net Weight161 kg kg
Gross Weight171 kg kg

Environmental

WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIPd19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland

External Classifications and Standards

UNSPSC26101100
