Home / ABB / M2BAX 132MA 4
Available on request

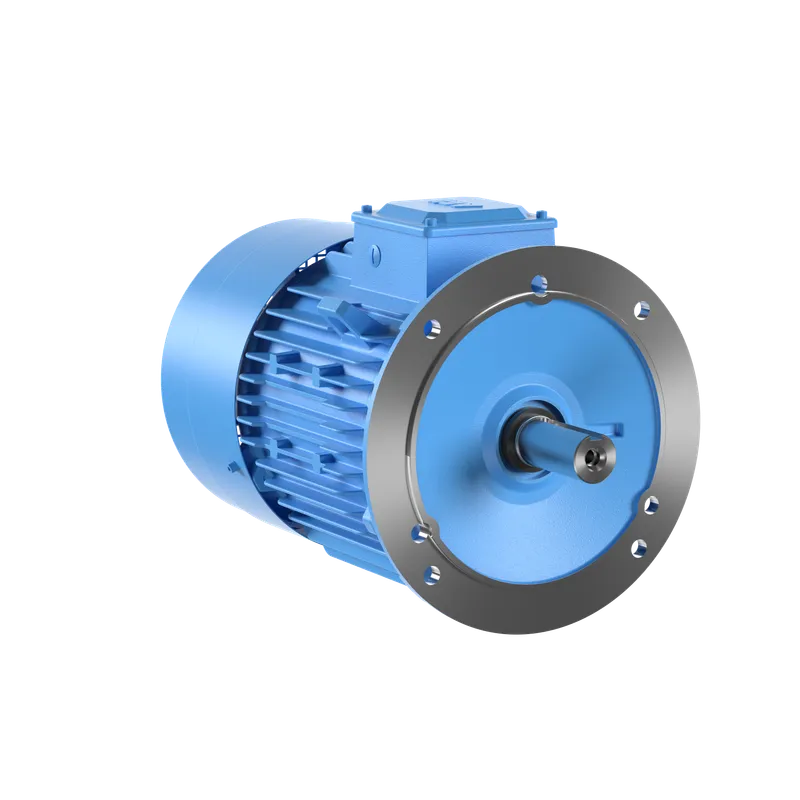

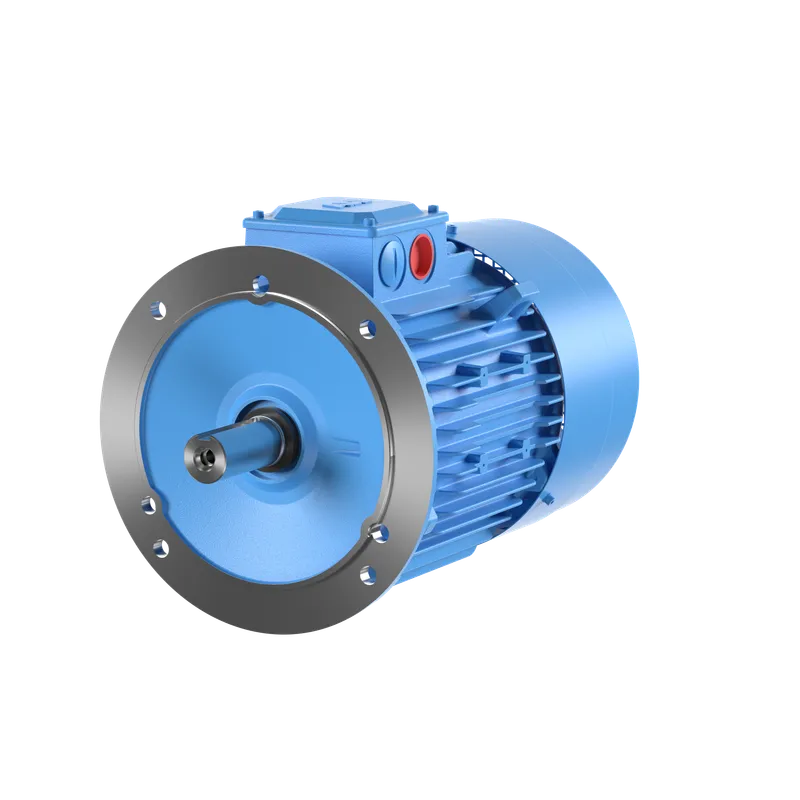

M2BAX 132MA 4

MPN: 3GBA132310-BEC · Brand: ABB
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight70 kg

Shipping & availability

When can 3GBA132310-BEC be shipped?

3GBA132310-BEC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GBA132310-BEC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GBA132310-BEC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBA132310-BEC, subject to availability and destination.

IE2 High Efficiency Cast Iron Motors, 7.5 kW, 500 V (3GBA132310-BEC)

Specifications

Ordering

ABB Type DesignationM2BAX 132MA 4
Invoice DescriptionM2BAX 132MA 4
Product Name3-Phase squirrel cage motor
Product TypeEBA2__M2BAX_CI
Country or Territory of OriginChina
Customs Tariff Number85015220
Medium Description7.5kW, 4 Poles, Frame Size 132, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GBA132310-BEC)
Short Description7.5kW, 4P, Frame Size 132, 3PH, 500V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection ConfigurationD
Temperature Class Default--
Input Voltage (Uin)500 V V
Frequency (f)50 Hz Hz
Output Power7.5 kW kW
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC411
IE Class Data (50 Hz)IE Class IE2, Full Load (100%) 88.7 %, Partial Load (75%) 89.0 %, Partial Load (50%) 88.4 %
IE Class Data (60 Hz)IE Class IE2, Full Load (100%) 89.5 %, Partial Load (75%) 88.9 %, Partial Load (50%) 87.6 %
IP ClassIP55
Insulation ClassICLF
Direction of RotationBoth sides
Number of Poles (High)4
Two Speed MotorNo
Type of DutyS1
Voltage CodeE

Mechanical

Frame MaterialCast Iron
Frame Size132
Bearing6208-2Z/C3
Bearing NDE6208-2Z/C3
IM ClassIMB5 IM3001
Terminator Box LocationD-End top

Dimensions

Product Net Depth / Length521 mm mm
Product Net Height302 mm mm
Product Net Width270 mm mm
Product Net Weight70 kg kg
Gross Weight75 kg kg

Environmental

WEEE Category5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIPd19446d4-4db6-4ddb-826d-2341a0f7dd46 Finland

External Classifications and Standards

UNSPSC26101100
