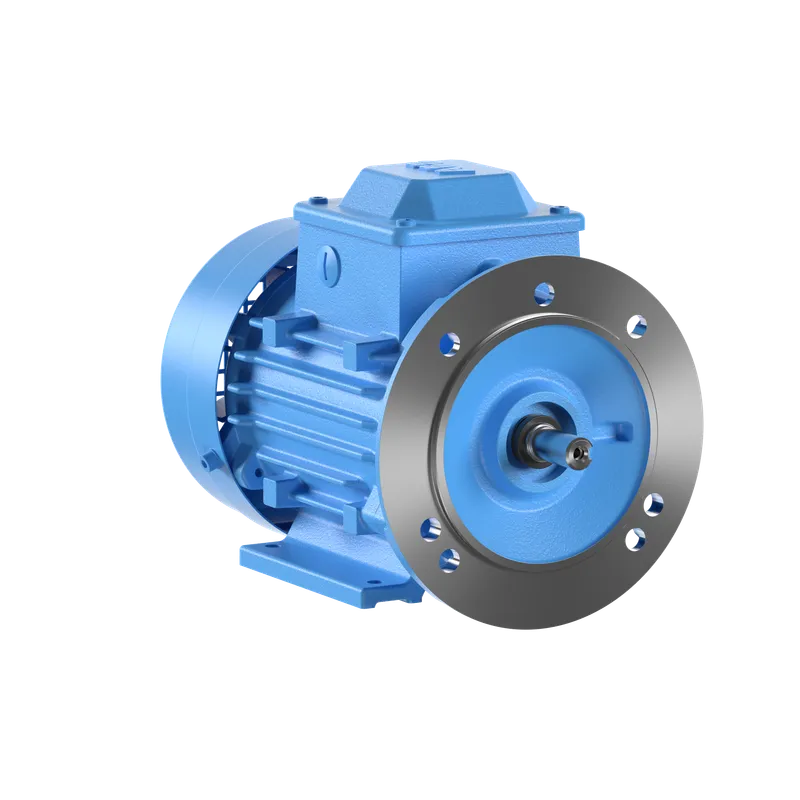

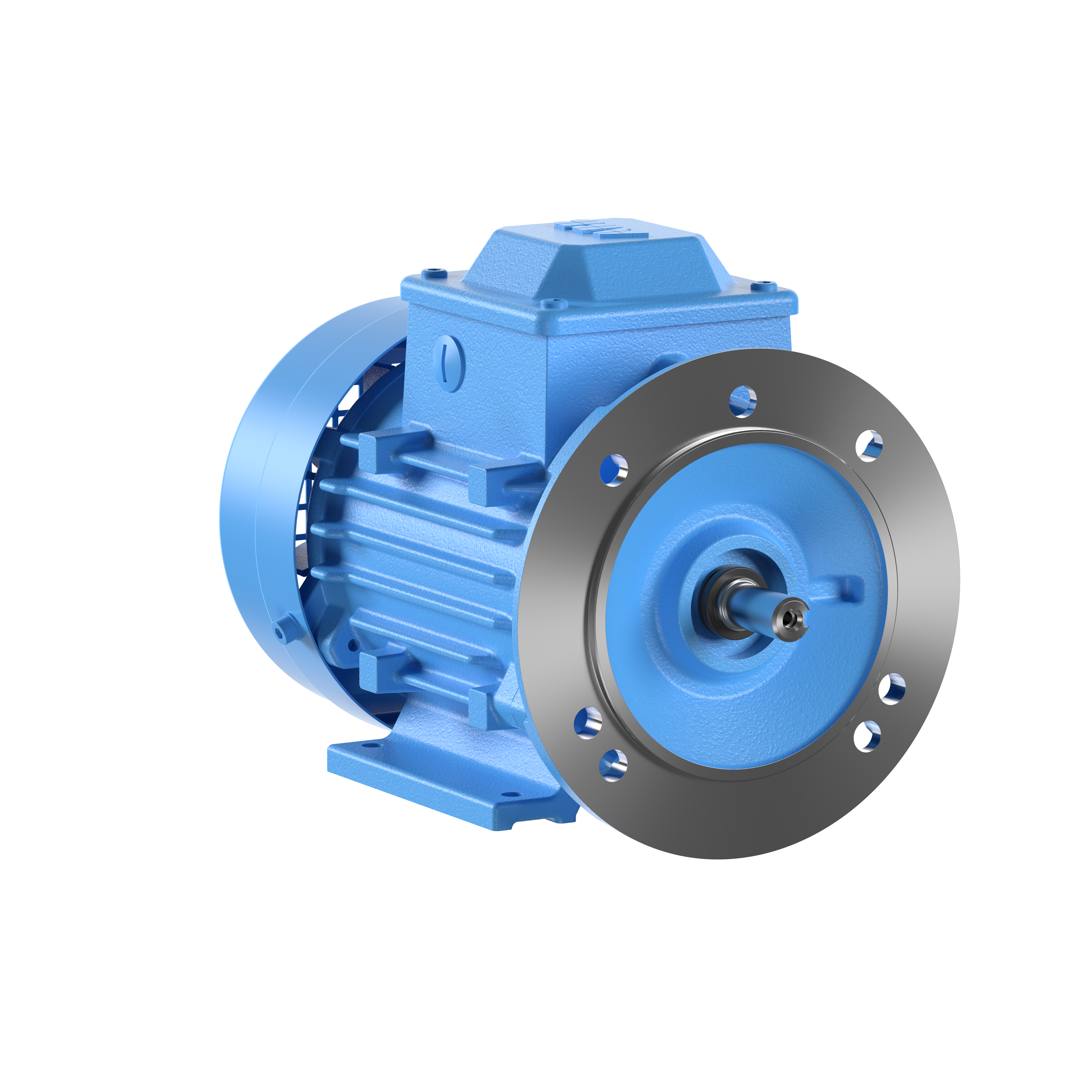

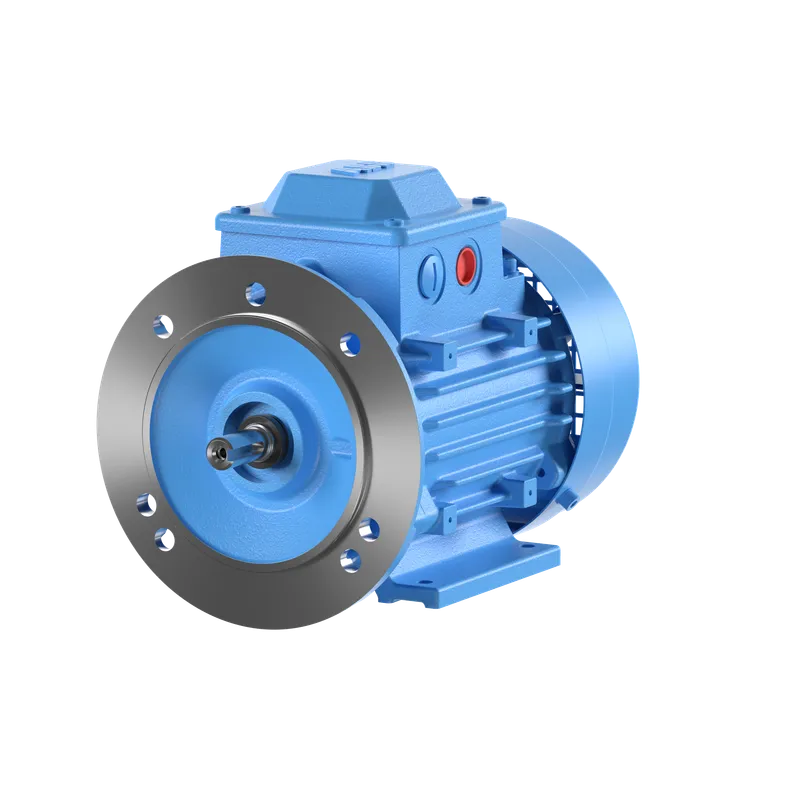

M2BAX 90LA 2

Name: M2BAX 90LA 2
Brand: ABB
SKU: 3GBA091510-HDCIN

MPN: 3GBA091510-HDCIN · Brand: ABB

Price on request

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Flameproof IEC Low voltage motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	23 kg

Shipping & availability

When can 3GBA091510-HDCIN be shipped?

3GBA091510-HDCIN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GBA091510-HDCIN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GBA091510-HDCIN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GBA091510-HDCIN, subject to availability and destination.

IE2 (BIS) High Efficiency Cast Iron Motors, 2.2 kW, 400 V (3GBA091510-HDCIN)

Specifications

Ordering

ABB Type Designation	M2BAX 90LA 2
Invoice Description	M2BAX 90LA 2
Product Name	3-Phase squirrel cage motor
Product Type	IBA2__M2BAX_IE2_CI
Country or Territory of Origin	India
Customs Tariff Number	85015220
Medium Description	2.2kW, 2 Poles, Frame Size 90, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GBA091510-HSCIN)
Short Description	2.2kW, 2P, Frame Size 90, 3PH, 400V, 50Hz, IP55, IMB35/IM2001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	2.2 kW kW
Altitude	1000 m m
Ambient Temperature	50 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE2, Full Load (100%) 83.2 %, Partial Load (75%) 84.0 %, Partial Load (50%) 82.6 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	2
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D
