Available on request

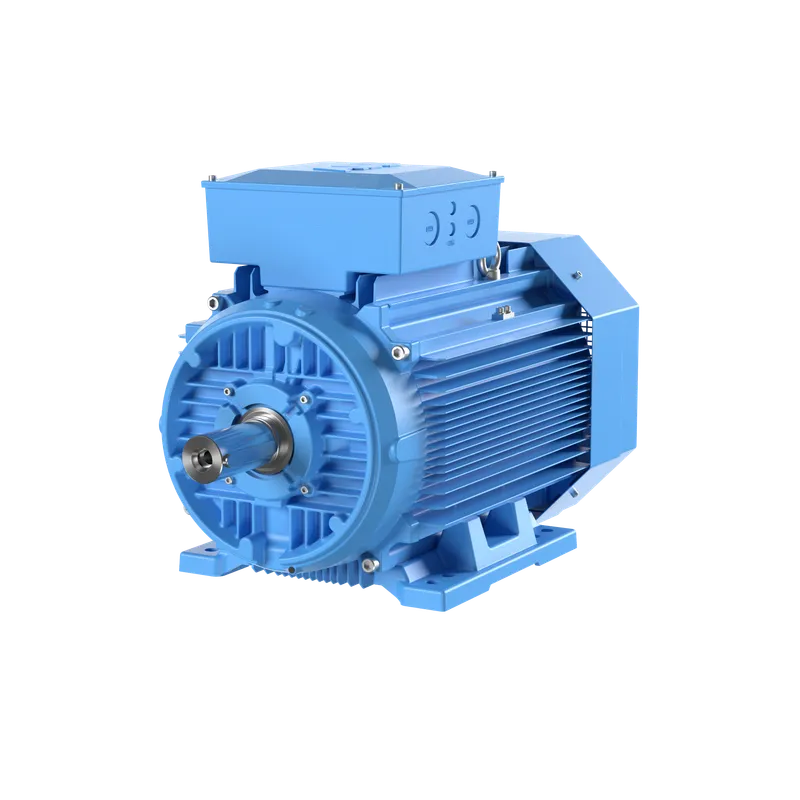

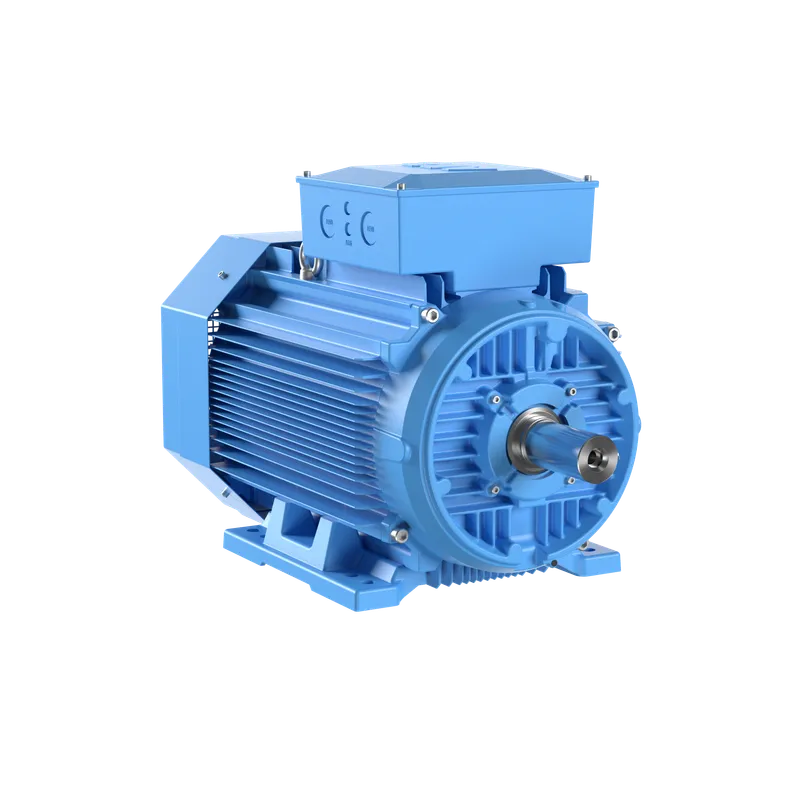

M3AA 200MLB 2
MPN: 3GAA201420-AEK · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Flameproof IEC Low voltage motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 241 kg |
Shipping & availability
When can 3GAA201420-AEK be shipped?
3GAA201420-AEK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GAA201420-AEK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GAA201420-AEK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA201420-AEK, subject to availability and destination.
IE3 Premium Efficiency Aluminum Motors, 37 kW, 500 V (3GAA201420-AEK)
Specifications
Ordering
| ABB Type Designation | M3AA 200MLB 2 |
| Invoice Description | M3AA 200MLB 2 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3AA3__M3AA_IE3_AA |
| Country or Territory of Origin | Finland, Poland |
| Customs Tariff Number | 85015230 |
| Replaced Product ID (OLD) | 3GAA201052-AEK |
| Medium Description | 37kW, 2 Poles, Frame Size 200, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAA201420-AEK) |
| Short Description | 37kW, 2P, Frame Size 200, 3PH, 500V, 50Hz, IP55, IMB3/IM1001 |
Electrical
| Connection Configuration | D |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 500 V V |
| Frequency (f) | 50 Hz Hz |
| Output Power | 37 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE3, Full Load (100%) 93.7 %, Partial Load (75%) 94.1 %, Partial Load (50%) 93.8 % |
| IE Class Data (60 Hz) | IE Class IE3, Full Load (100%) 93.0 %, Partial Load (75%) 92.8 %, Partial Load (50%) 91.2 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 2 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | E |
Mechanical
| Frame Material | Aluminum |
| Frame Size | 200 |
| Bearing | 6312-2Z/C3 |
| Bearing NDE | 6210-2Z/C3 |
| IM Class | IMB3 IM1001 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Depth / Length | 821 mm mm |
| Product Net Height | 532 mm mm |
| Product Net Width | 380 mm mm |
| Product Net Weight | 241 kg kg |
| Gross Weight | 251 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
| SCIP | 27ac6190-e1ce-4080-8654-6552aaabbe58 Finland |
External Classifications and Standards
| UNSPSC | 26101100 |
