Home / ABB / M3AA 132SMG 2
Available on request

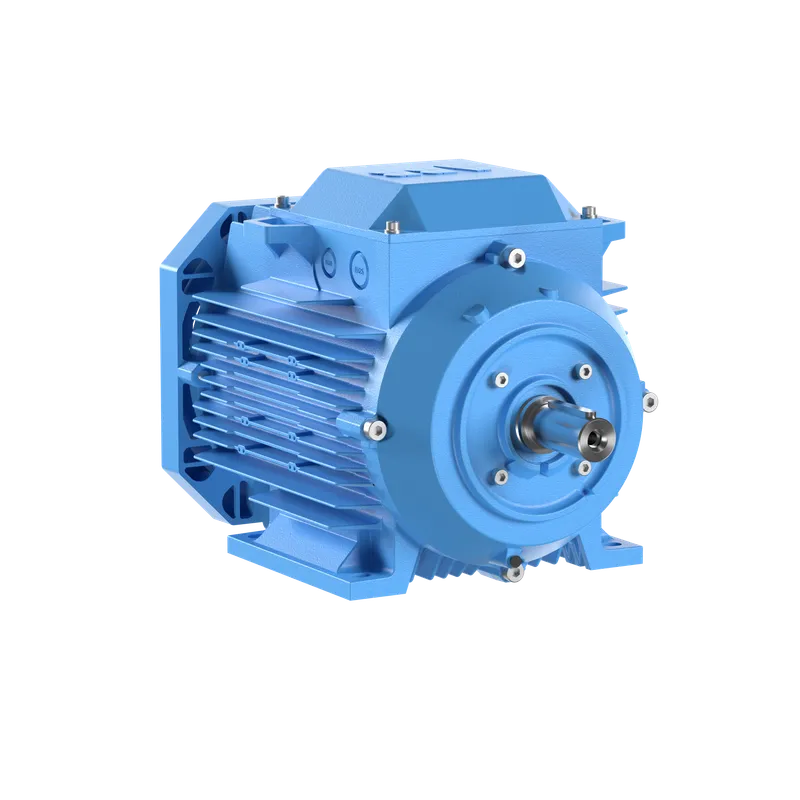

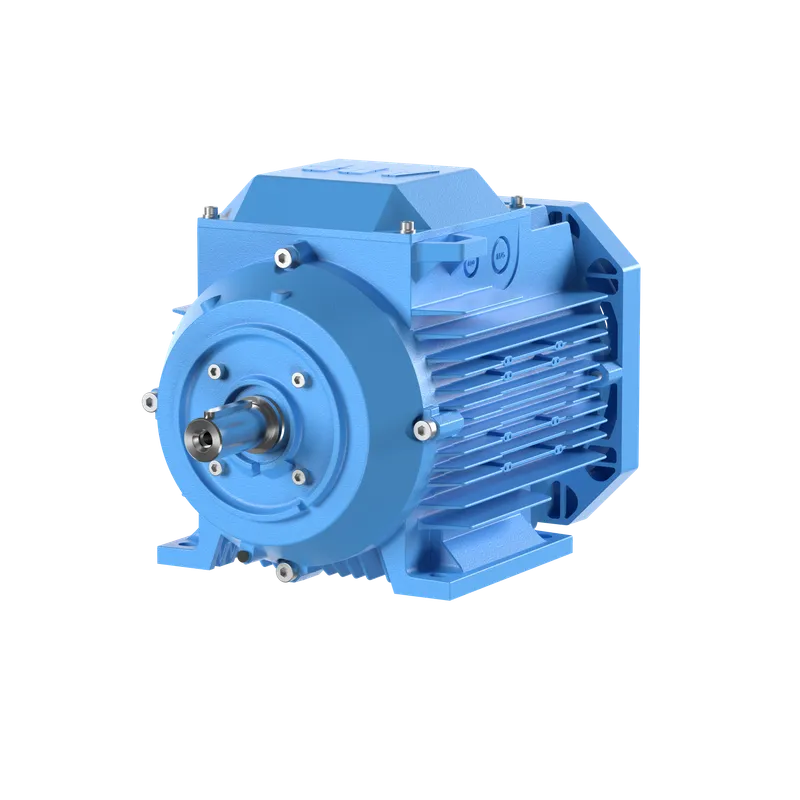

M3AA 132SMG 2

MPN: 3GAA131270-ADE · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight81 kg

Shipping & availability

When can 3GAA131270-ADE be shipped?

3GAA131270-ADE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GAA131270-ADE in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GAA131270-ADE and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA131270-ADE, subject to availability and destination.

IE2 High Efficiency Aluminum Motors, 15 kW, 400 V (3GAA131270-ADE)

Specifications

Ordering

ABB Type DesignationM3AA 132SMG 2
Invoice DescriptionM3AA 132SMG 2
Product Name3-Phase squirrel cage motor
Product Type3AA2__M3AA_IE2_AA
Country or Territory of OriginFinland, Poland, China
Customs Tariff Number85015230
Replaced Product ID (OLD)3GAA131316-ADE
Stocked At (Warehouses)Menden, Germany
Medium Description15kW, 2 Poles, Frame Size 132, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAA131270-ADE)
Short Description15kW, 2P, Frame Size 132, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection ConfigurationD
Temperature Class Default--
Input Voltage (Uin)400 V V
Frequency (f)50 Hz Hz
Output Power15 kW kW
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC411
IE Class Data (50 Hz)IE Class IE2, Full Load (100%) 90.4 %, Partial Load (75%) 90.8 %, Partial Load (50%) 90.0 %
IE Class Data (60 Hz)IE Class IE2, Full Load (100%) 90.7 %, Partial Load (75%) 90.4 %, Partial Load (50%) 88.8 %
IP ClassIP55
Insulation ClassICLF
Direction of RotationBoth sides
Number of Poles (High)2
Two Speed MotorNo
Type of DutyS1
Voltage CodeD

Mechanical

Frame MaterialAluminum
Frame Size132
Bearing6308-2Z/C3
Bearing NDE6206-2Z/C3
IM ClassIMB3 IM1001
Terminator Box LocationD-End top

Dimensions

Product Net Depth / Length487 mm mm
Product Net Height296 mm mm
Product Net Width262 mm mm
Product Net Weight81 kg kg
Gross Weight86 kg kg

Environmental

WEEE Category5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP27ac6190-e1ce-4080-8654-6552aaabbe58 Finland

External Classifications and Standards

UNSPSC26101100
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
