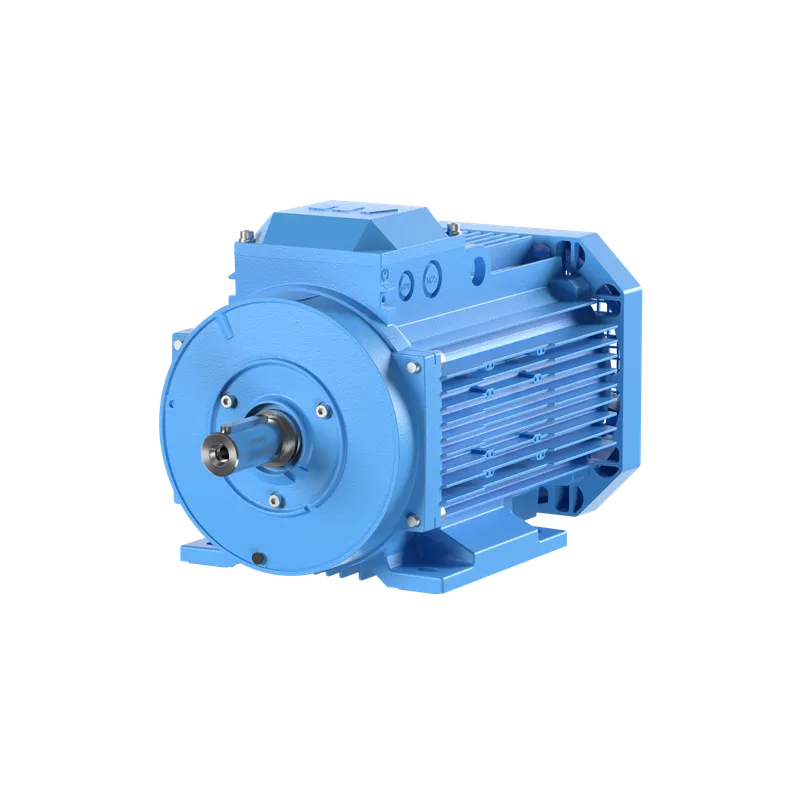

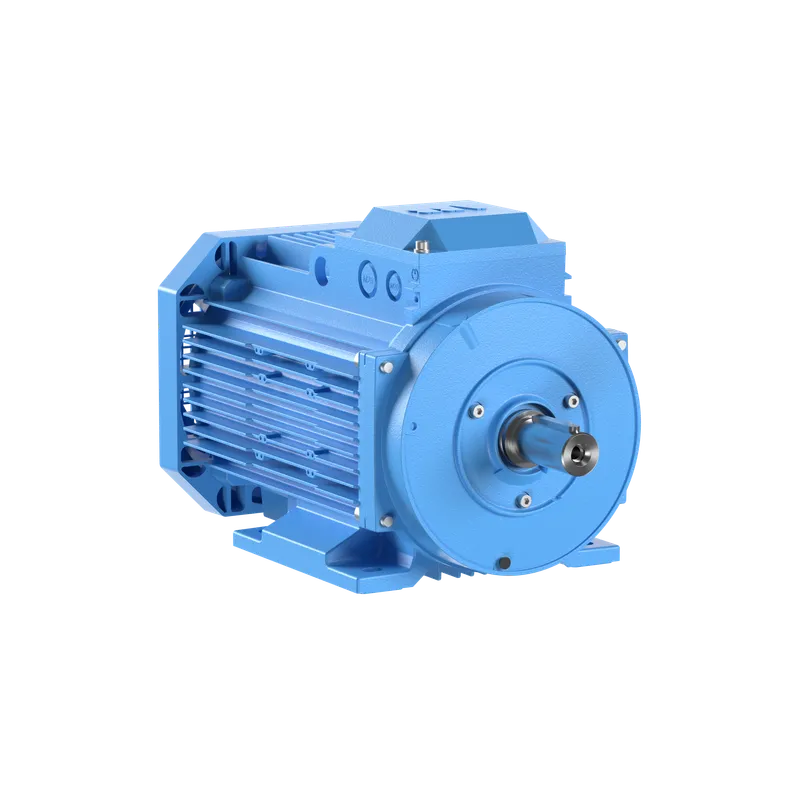

M3AA 90LD 6

Name: M3AA 90LD 6
Brand: ABB
SKU: 3GAA093540-ASK

MPN: 3GAA093540-ASK · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Flameproof IEC Low voltage motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	19 kg

Shipping & availability

When can 3GAA093540-ASK be shipped?

3GAA093540-ASK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GAA093540-ASK in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GAA093540-ASK and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA093540-ASK, subject to availability and destination.

IE3 Premium Efficiency Aluminum Motors, 0.75 kW, 400 V (3GAA093540-ASK)

Specifications

Ordering

ABB Type Designation	M3AA 90LD 6
Invoice Description	M3AA 90LD 6
Product Name	3-Phase squirrel cage motor
Product Type	3AA3__M3AA_IE3_AA
Country or Territory of Origin	China, Finland, Romania
Customs Tariff Number	85015100
Stocked At (Warehouses)	Menden, Germany, Sant Quirze del Vallés - BCN, Spain, Vittuone, Italy
Medium Description	0.75kW, 6 Poles, Frame Size 90, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAA093540-ASK)
Short Description	0.75kW, 6P, Frame Size 90, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Output Power	0.75 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE3, Full Load (100%) 78.9 %, Partial Load (75%) 78.8 %, Partial Load (50%) 77.0 %
IE Class Data (60 Hz)	IE Class IE3, Full Load (100%) 82.5 %, Partial Load (75%) 81.8 %, Partial Load (50%) 78.3 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	6
Two Speed Motor	No
Type of Duty	S1
Voltage Code	S
