M3AA 90L 4 HO

Name: M3AA 90L 4 HO
Brand: ABB
SKU: 3GAA092003-BDE

MPN: 3GAA092003-BDE · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	16 kg

Shipping & availability

When can 3GAA092003-BDE be shipped?

3GAA092003-BDE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GAA092003-BDE in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GAA092003-BDE and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA092003-BDE, subject to availability and destination.

No Description Available

Specifications

Ordering

ABB Type Designation	M3AA 90L 4 HO

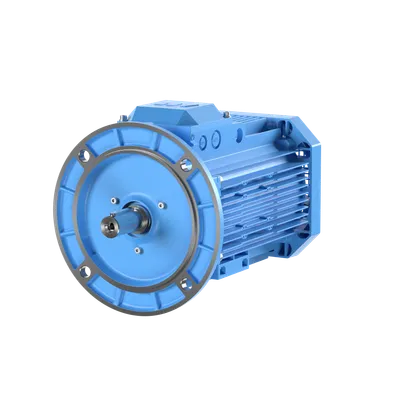

Product Name	3-Phase squirrel cage motor
Product Type	3AA1__M3AA_IE1_AA
Country or Territory of Origin	Spain, Sweden, Poland
Customs Tariff Number	85015220
Replaced Product ID (OLD)	3GAA092003-BDA

Electrical

Temperature Class Default	--
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC411
IE Class Data (50 Hz)	IE Class IE1, Full Load (100%) 79.7 %, Partial Load (75%) 82.0 %, Partial Load (50%) 80.9 %
IE Class Data (60 Hz)	IE Class IE1, Full Load (100%) 83.7 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S1
Voltage Code	D
