T1N 160 TMD160-1600 3p F FC Cu (1├ù70mm2)

Name: T1N 160 TMD160-1600 3p F FC Cu (1├ù70mm2)
Brand: ABB
SKU: 1SDA050924R1

MPN: 1SDA050924R1 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	IRC5 Single
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1 kg

Shipping & availability

When can 1SDA050924R1 be shipped?

1SDA050924R1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SDA050924R1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SDA050924R1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SDA050924R1, subject to availability and destination.

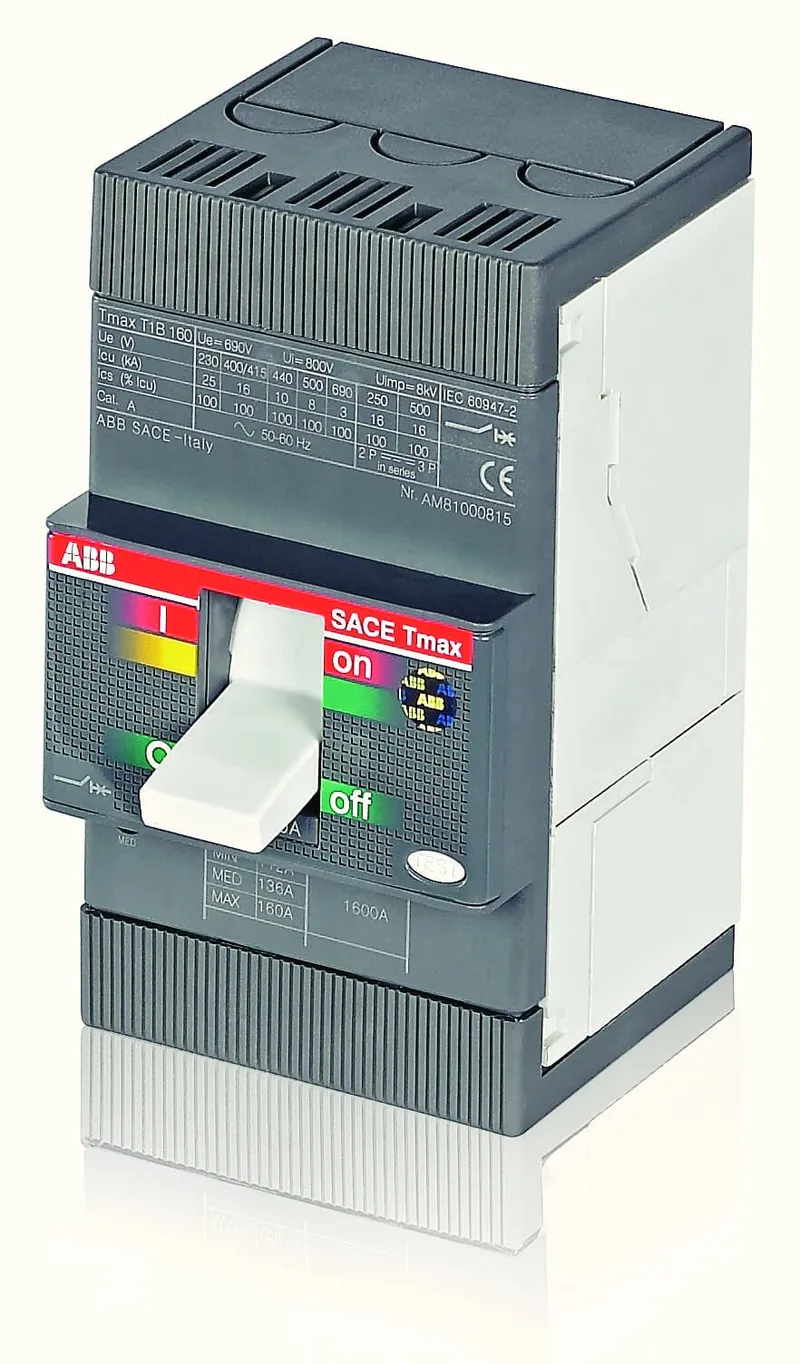

C.BREAKER TMAX T1N 160 FIXED THREE-POLE WITH FRONT TERMINALS FOR CABLE Cu 70mm2 AND THERMOMAGNETIC RELEASE TMD R 160-1600 A

Specifications

Material Compliance

RoHS Declaration

1SDL000200R0001

Environmental

Environmental Information

1SDL000140R0

Ordering

EAN	8015644513368
Minimum Order Quantity	1 piece
Customs Tariff Number	85362090

Dimensions

Product Net Width	76 mm mm
Product Net Height	130 mm mm
Product Net Depth / Length	70 mm mm
Product Net Weight	1 kg kg

Container Information

Package Level 1 Units	1 piece
Package Level 1 Width	128 mm mm
Package Level 1 Height	135 mm mm
Package Level 1 Depth / Length	143 mm mm
Package Level 1 Gross Weight	1.11 kg kg
Package Level 1 EAN	8015644513368

Additional Information

Product Main Type	SACE Tmax T
Product Name	Moulded Case Circuit Breaker
Product Type	CB
Suitable For	T1
Suitable for Product Class	Moulded Case Circuit Breakers
Version	F

Technical

Electrical Durability	8000 cycle, 120 cycles per hour
Mechanical Durability	25000 cycle, 240 cycles per hour
Number of Poles	3P
Power Loss	at Rated Operating Conditions per Pole 15 W W
Rated Current (In)	160 A A
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	800 V V
Rated Operational Voltage	690 V AC, 500 V DC V
Rated Service Short-Circuit Breaking Capacity (Ics)	(220 V AC) 37,5 kA, (230 V AC) 37,5 kA, (380 V AC) 27 kA, (400 V AC) 27 kA, (415 V AC) 27 kA, (440 V AC) 11 kA, (500 V AC) 7,5 kA, (690 V AC) 3 kA V
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	(220 V AC) 5 kA, (230 V AC) 5 kA, (380 V AC) 36 kA, (400 V AC) 36 kA, (415 V AC) 36 kA, (440 V AC) 22 kA, (500 V AC) 15 kA, (690 V AC) 6 kA, (250 V DC) 2 Poles in Series 36 kA, (250 V DC) 3 Poles in Series 40 kA, (500 V DC) 3 Poles in Series 36 kA V
Rated Uninterrupted Current (Iu)	160 A A
Release	TMD
Release Type	TM
Short-Circuit Performance Level	N
Standards	IEC 60947
Sub-type	T1
Terminal Connection Type	Fixed Circuit-Breakers, Front for Copper Cables
Test Voltage Max (Utest)	3000 V V
Test Voltage at Industrial Frequency for 1 Minute	3000 V V

Certificates and Declarations

Data Sheet, Technical Information	1SDC210004D0203
Declaration of Conformity - CE	1SDL000165R0001
GL Certificate	1SDL000163R0058
Data Sheet, Technical Information (Part 2)	1SDM000030R0001
Wiring Diagram	1SDM000030R0001
Instructions and Manuals	ITSCE-RH0011001
Instructions and Manuals (Part 2)	ITSCE-RH0100.001
Instructions and Manuals (Part 3)	ITSCE-RH0011002
