Available on request
MOTOR,10,1800,SD100,575,215TC,NP
MPN: 1LE23212AB213GA3 · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | SD100 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1LE23212AB213GA3 be shipped?
1LE23212AB213GA3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1LE23212AB213GA3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1LE23212AB213GA3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1LE23212AB213GA3, subject to availability and destination.

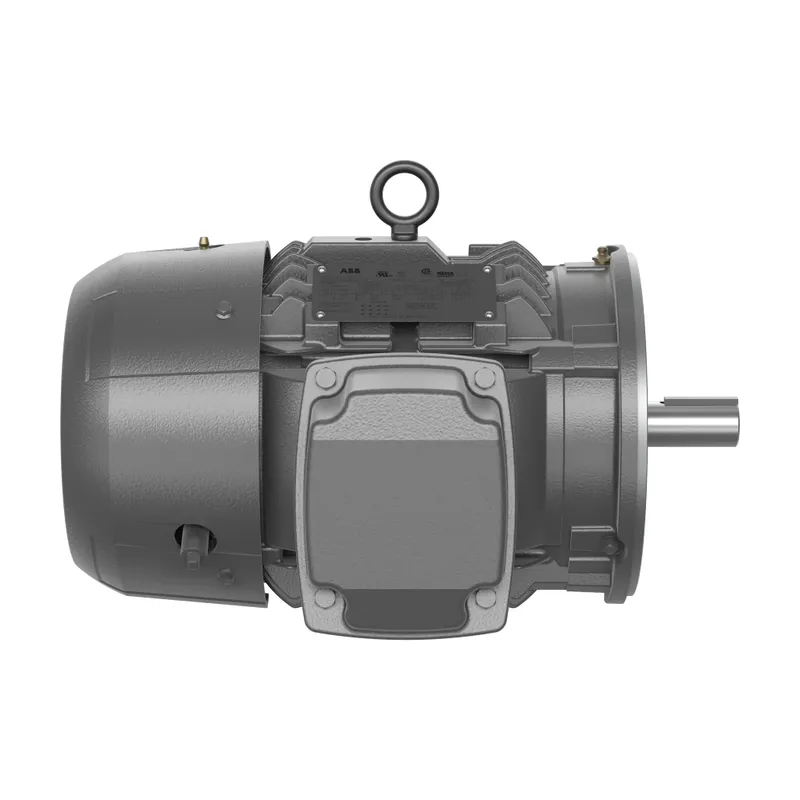

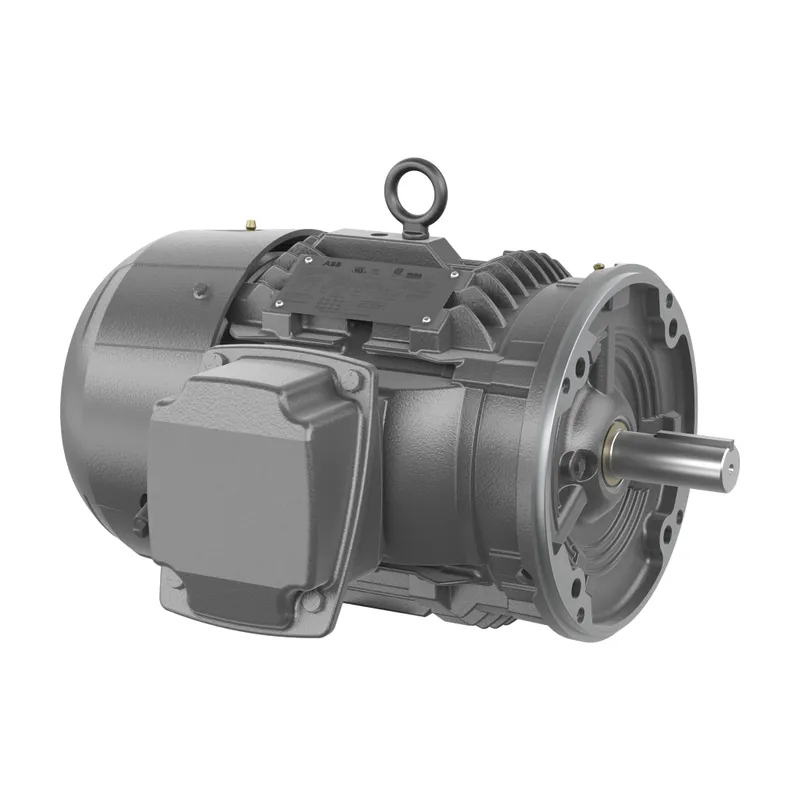

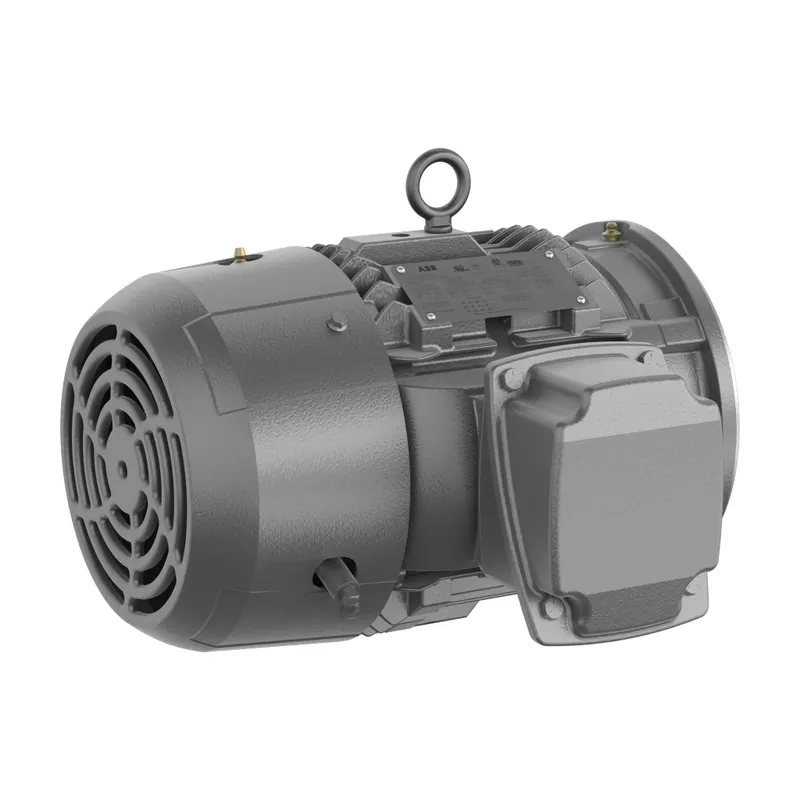

Severe Duty Motor 10 Hp 575 V (1LE23212AB213GA3)
Specifications
Ordering
| Catalog Number | 1LE23212AB213GA3 |
| Brand / Label | ABB NEMA Motors |
| Country or Territory of Origin | Mexico |
| Customs Tariff Number | 8501520400 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | single_speed |
| Power Factor | 81.7 % |
| Rated Efficiency | 91.7 % |
| Service Factor | 1.15 |
| Temperature Class | T3 |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 10 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group A, B, C & D A |
| Frame Material | Cast_Iron |
| Motor Frame Size | 215TC |
| Motor Base Type | Footless |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 0 in |
| Product Net Weight | 90 lb |
| Product Net Width | 0 in |
